Overview - DataTransfer 1
Users have full control over what model data gets transferred and how that data gets mapped to equivalent objects in either software.
CSiXRevitTM requires its own license to run.
Structural modeling can be done in ETABS®, SAP2000® or SAFE® or in Revit® and then later be synched up.
Supported Workflows
Supported Workflows
CSiXRevit supports four (4) main workflows of data transfer with Revit:

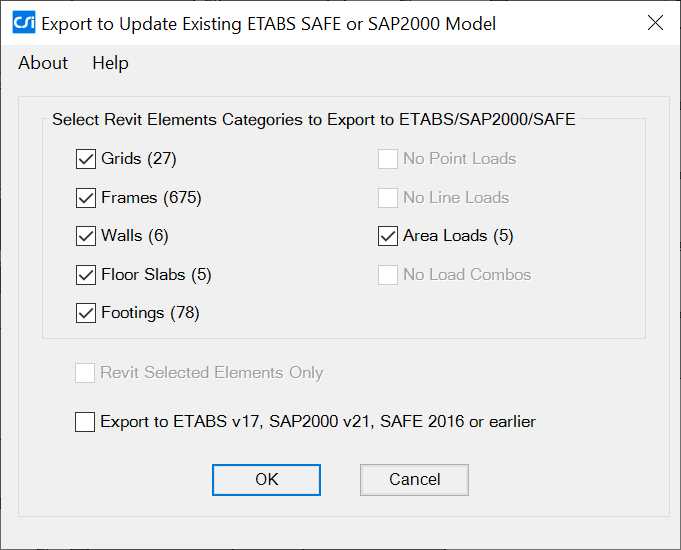

Supported Workflows #2
- Exporting from Revit to create a new CSI Software model
- Exporting from Revit to update an existing CSI Software model
- Importing from CSI Software to create a new Revit Model
- Importing from CSI Software to update an existing Revit Model

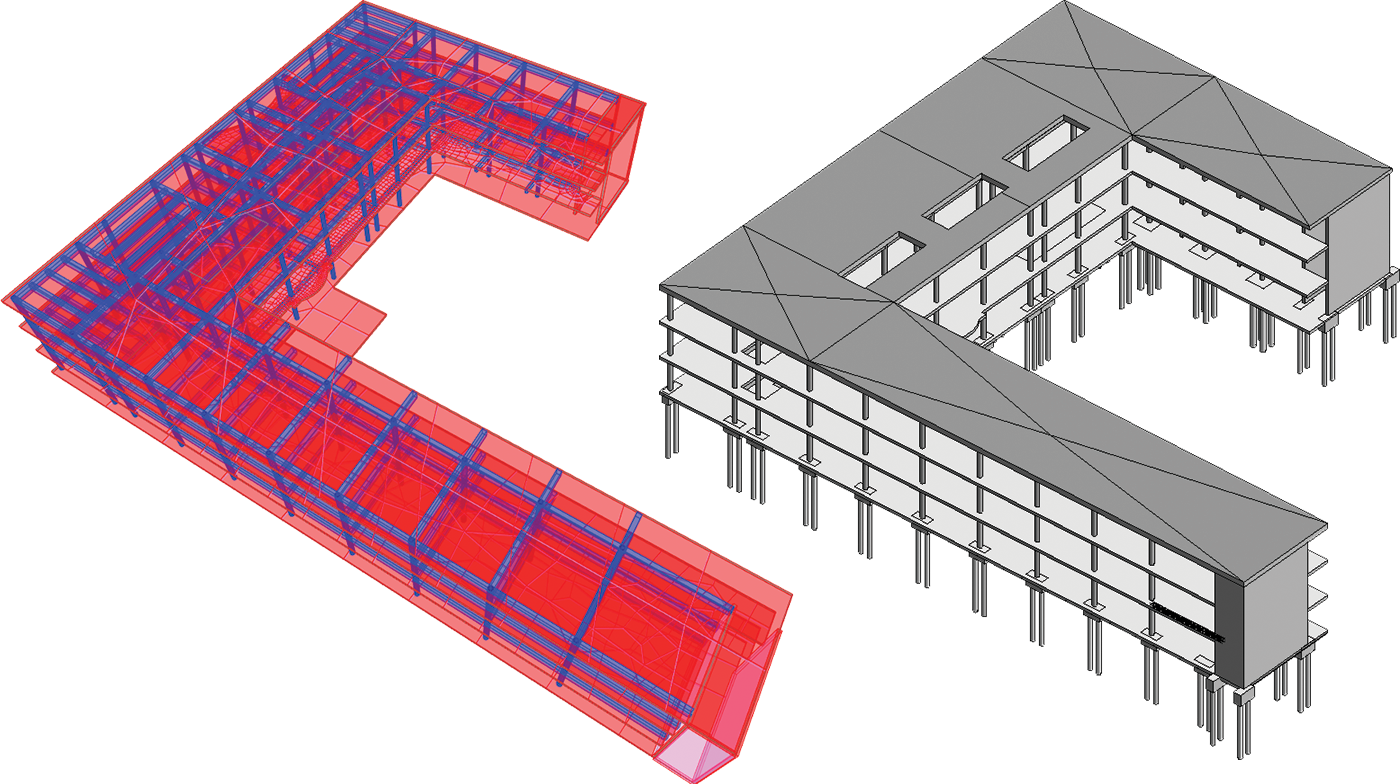

Data Transfer
The user has full control over what model information will be transferred between CSI Software models and Revit models.
Intermediate Data Exchange
All CSI products use the same intermediate data exchange file (.exr) to control model data exchange.

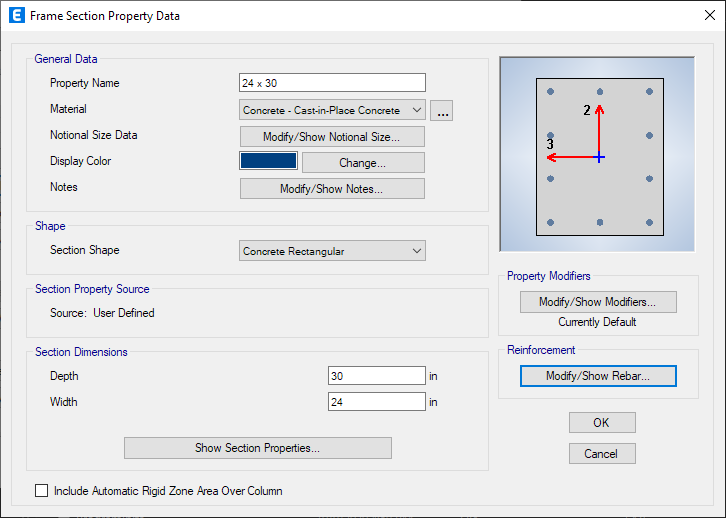

Parametric Mapping
CSiXRevit will support both direct section mapping of standard steel sections and also parametric sections that have been defined in Revit.

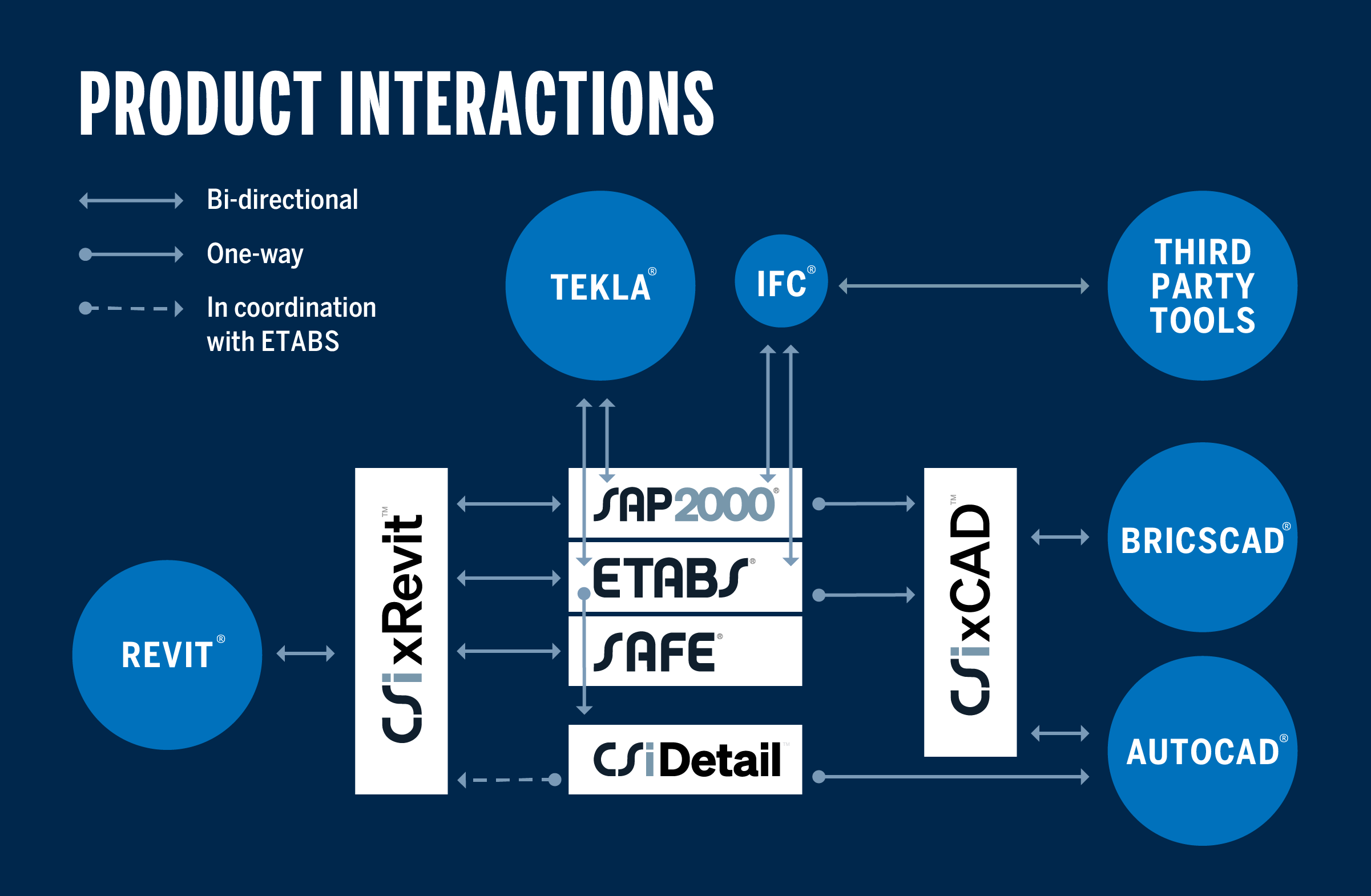

Supported Interoperability
CSiXRevit offers numerous interactions between various CSI software and third-party products.
Trusted worldwide
Built on engineering standards structural firms rely on
CSiXRevit is backed by decades of validated analysis and design workflows used by structural engineers around the world.
