SAPFire Analysis Engine

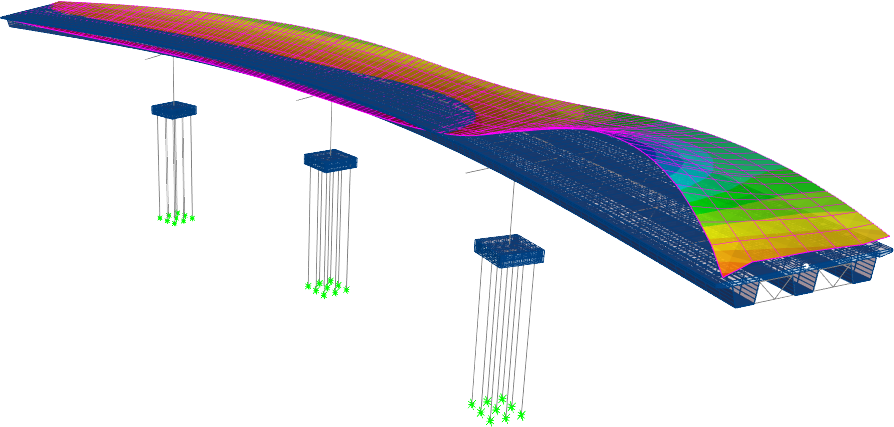

CSI Solvers have been tried and tested by the industry for over 45 years. The SAPFire Analysis Engine can support multiple 64-bit solvers for analysis optimization and perform both eigen analysis and Ritz analysis. Parallelization options are available to take advantage of multiple processors.
Overview 1
CSiBridge offers a single user interface to perform modeling, analysis, design, scheduling, load rating, and reporting.

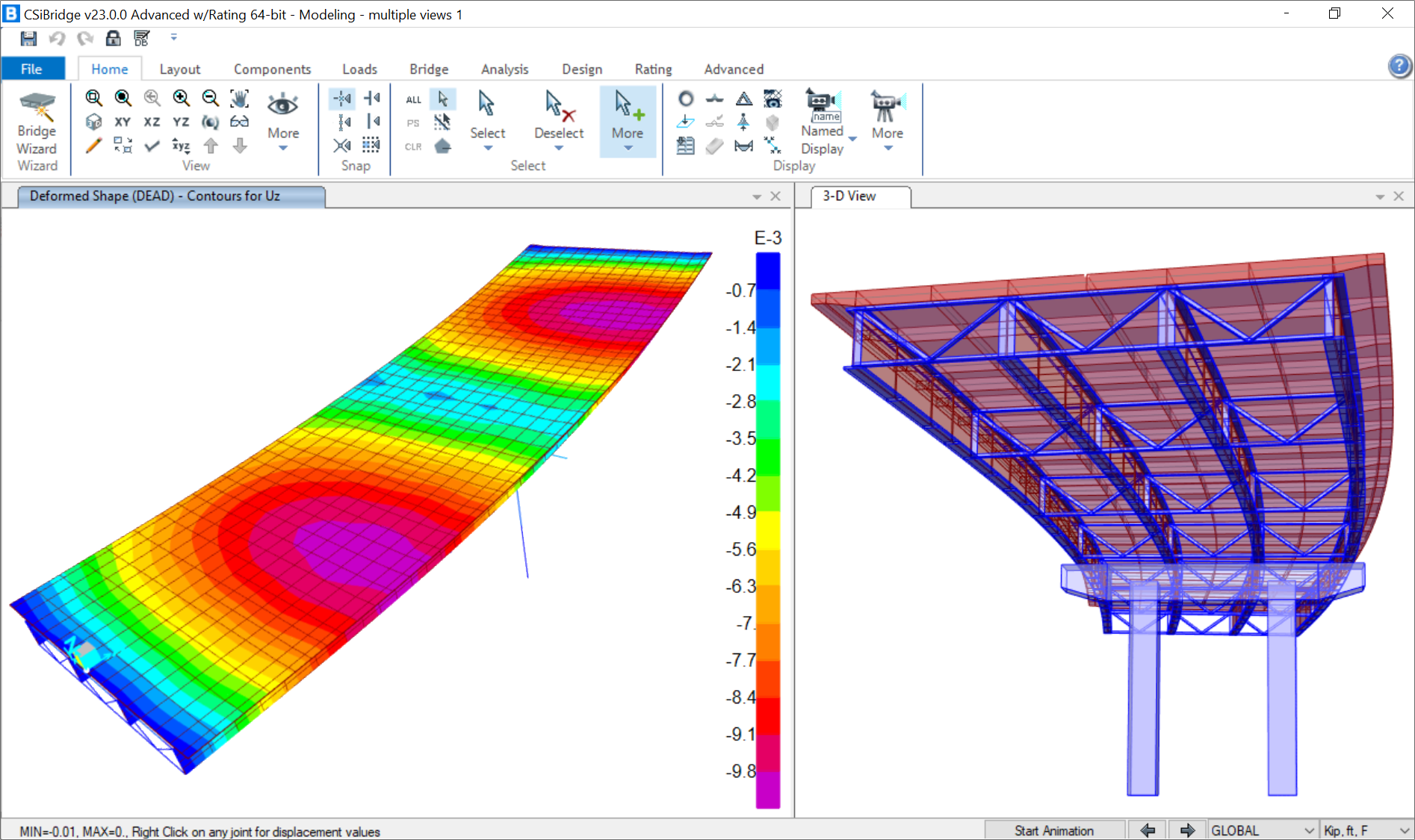

Smooth DirectX Graphics
DirectX graphics mode are now enhanced to use DirectX 11 for increased speed and capabilities. DirectX 11 graphics allow for swift navigation of models and fast rotations.

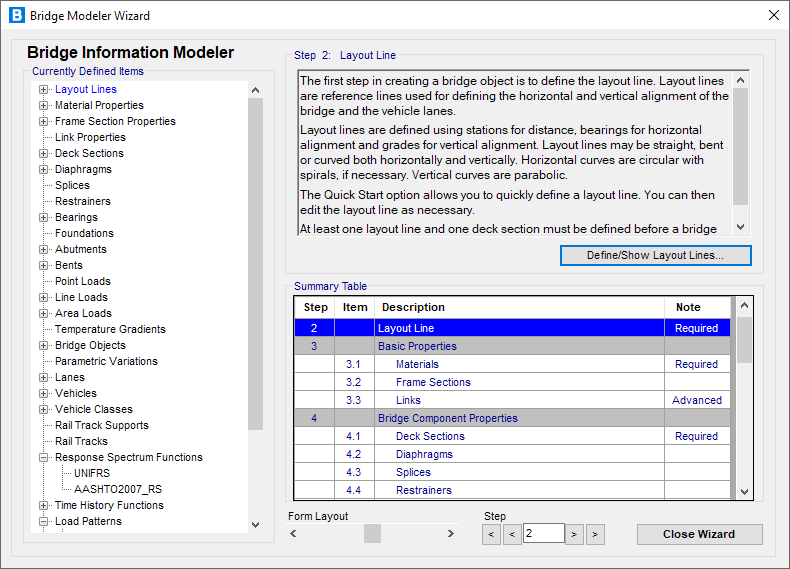

Parametric Bridge Modeling
The Bridge Wizard is a powerful tool that guides you step-by-step through the creation of a complete bridge model with instructions at each step to ensure that all of the necessary components are defined in the model.

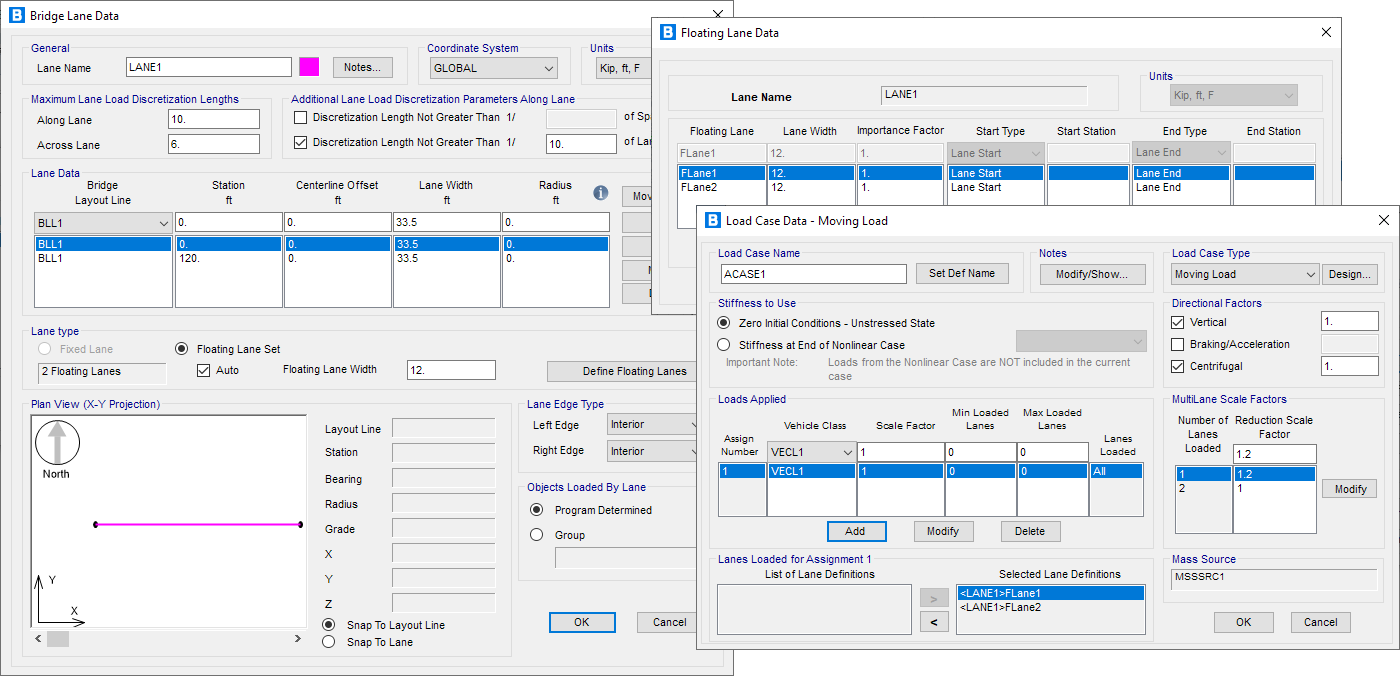

Moving Loads and Lanes
Moving loads may be applied to fixed or floating lanes to determine the maximum responses to every bridge element. Moving loads may be applied using vehicle classes or individual vehicles.
Staged Construction
Staged construction is a type of nonlinear analysis in CSiBridge that allows you to define a sequence of stages wherein you can add or remove portions of the structure, selectively apply loads to portions of the structure, and to consider time-dependent material behavior such as aging, creep and shrinkage.

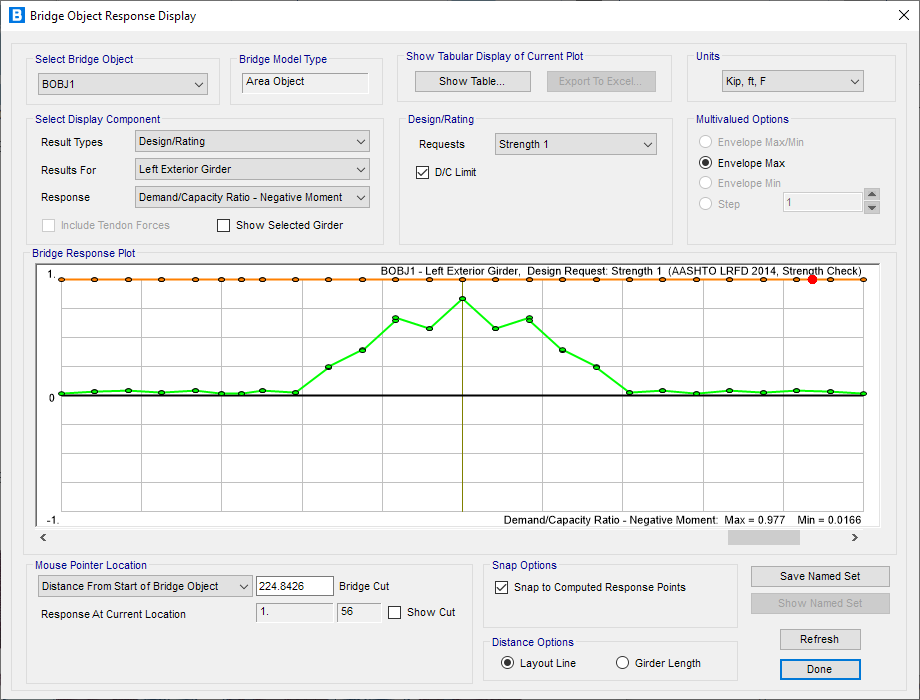

Design Codes
CSiBridge offers a wide range of code-based design features for steel frame, concrete frame, cold form steel, and aluminum frame. View a full list of supported design codes:
Supported Design Codes
Supported Design Codes
Trusted worldwide
Built on engineering standards structural firms rely on
CSiBridge is backed by decades of validated analysis and design workflows used by structural engineers around the world.
